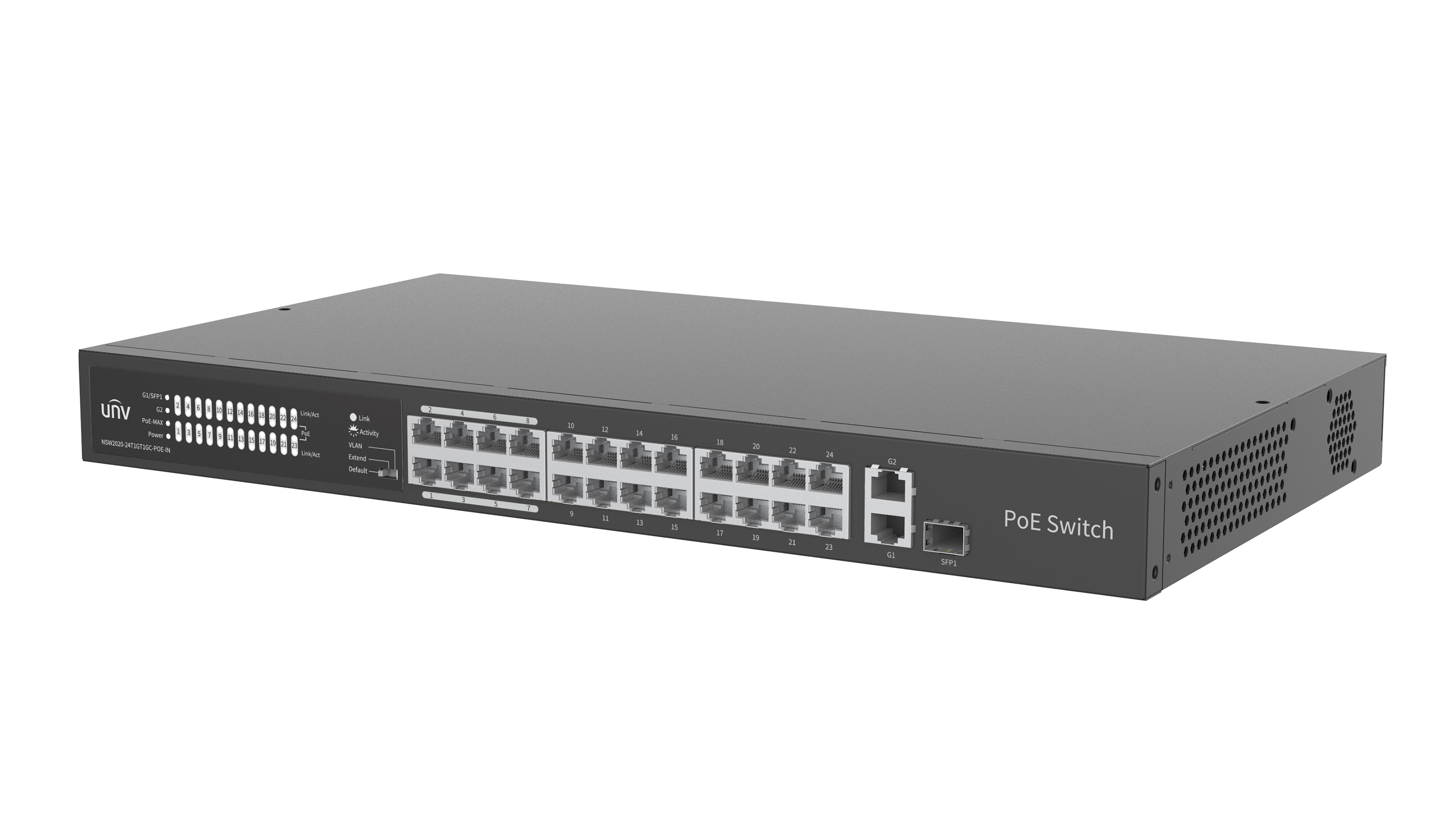

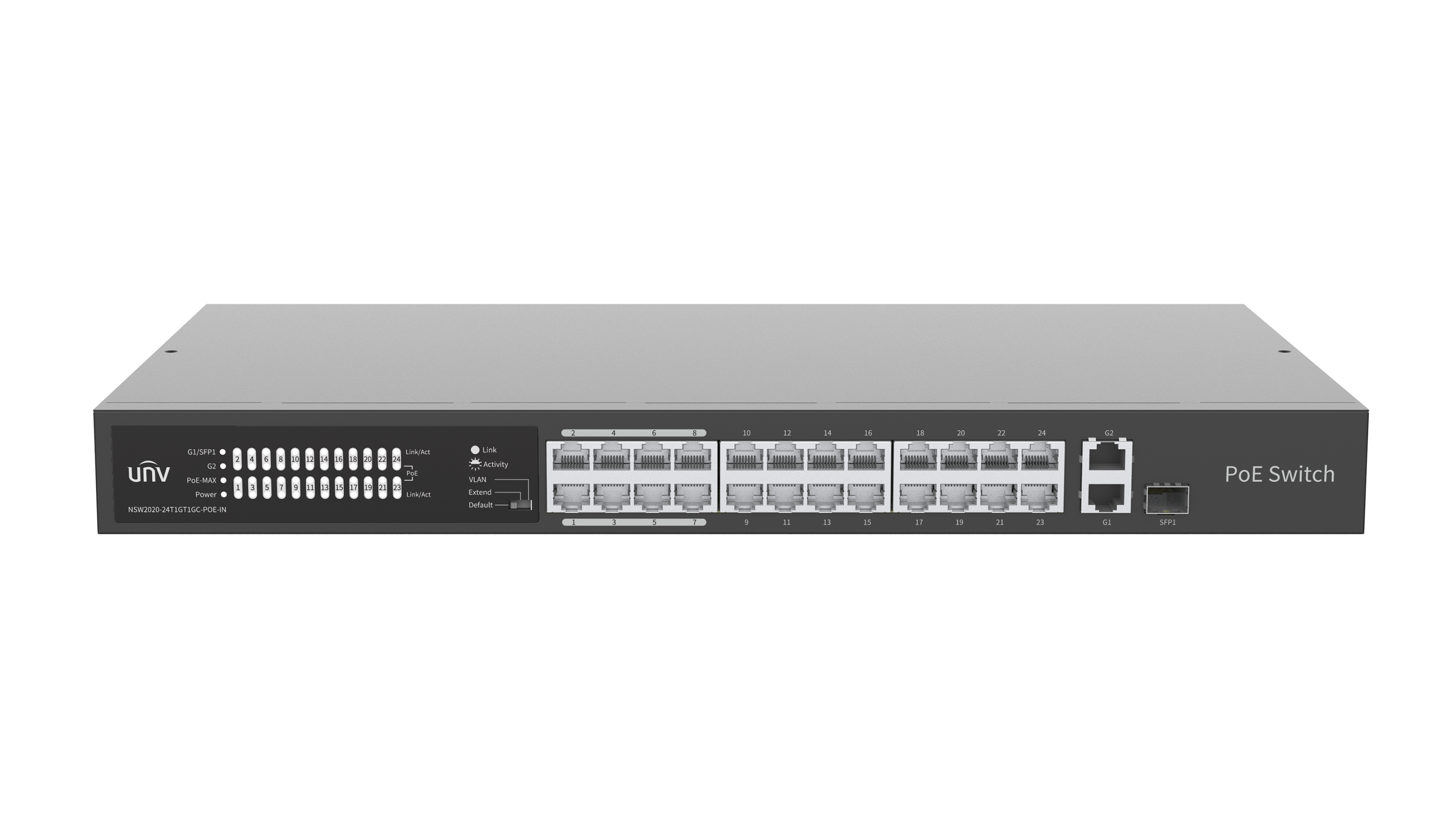

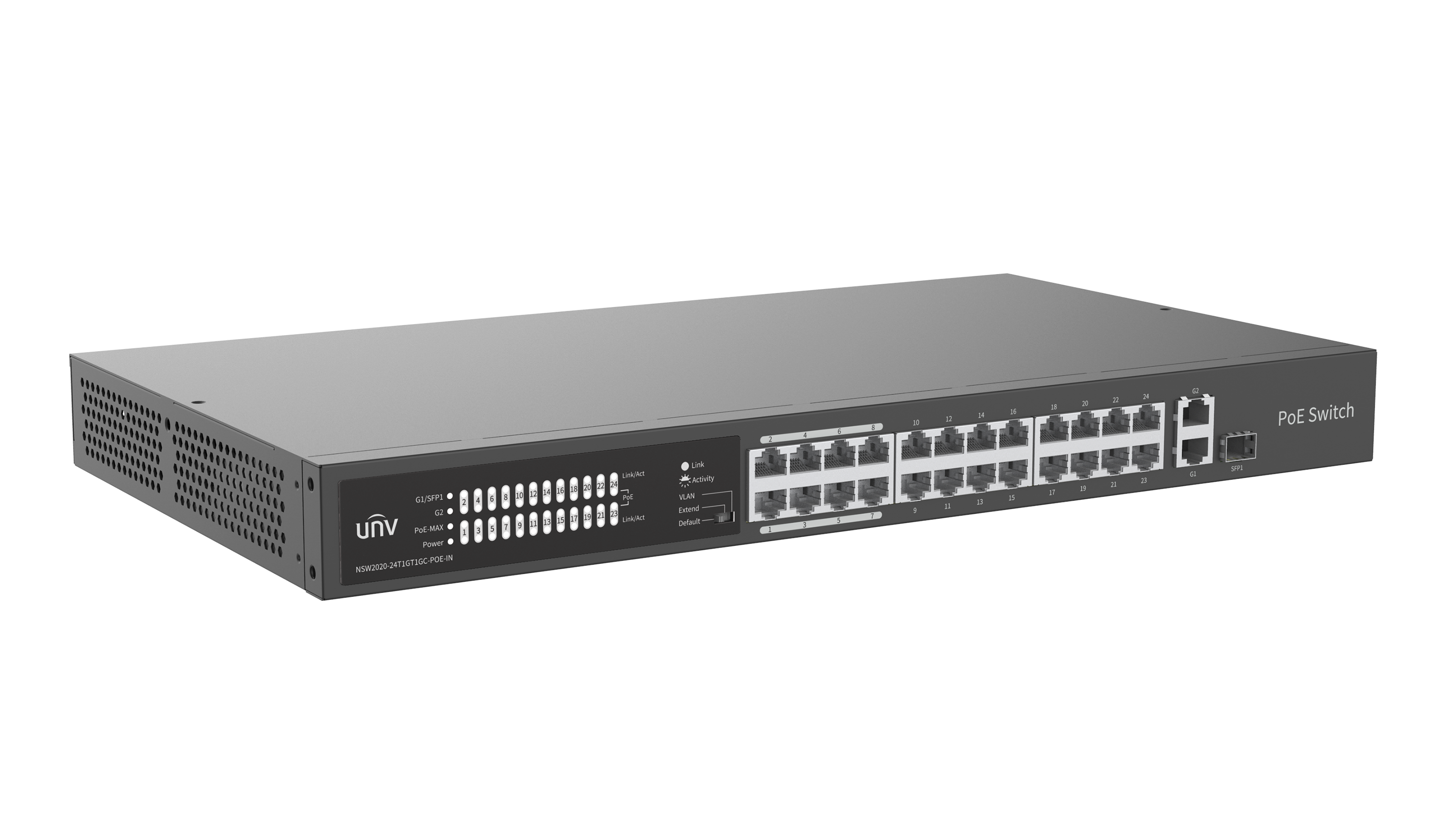

NSW2020-24T1GT1GC-POE-IN

Unmanaged Ethernet Switch(PoE)

? Multiple working modes to address your business needs: Default(Normal mode), VLAN(Secure mode), EXTEND(Surveillance mode)
? Support port traffic control
? Support for secure mode, all downlink ports can communicate only with uplink ports
? Up to 250m transmission distance on surveillance mode
? Support buffer optimization
? All metal housing, safe and reliable

Specification

Download

How to buy

Datasheet
HD Image
Quick Guide

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2025/8/26 18:10:21	UNV NSW2020-24T1GT1GC-POE-IN Unmanaged Ethernet PoE Switches.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2025/8/5 15:51:50	NSW2020-24T1GT1GC-POE-IN_HD_Image_1.png	png	Download
HD Image	2025/8/5 15:51:50	NSW2020-24T1GT1GC-POE-IN_HD_Image_2.png	png	Download
HD Image	2025/8/5 15:51:50	NSW2020-24T1GT1GC-POE-IN_HD_Image_3.png	png	Download

Class	Date	Title	Language	Type	Preview	Download
Quick Guide	2025/5/15 4:02:24	Quick Guide.pdf	English	pdf	Preview	Download

Want to learn more?

Contact sales

0%

	NSW2020-24T1GT1GC-POE-IN
Hardware Specification
Ports Type	24×100Mbps PoE ports (RJ45) + 1×1000Mbps Gigaethernet ports +1×1000Mbps Combo ports
Switching capacity	8.8 Gbps
Packet Buffer	4 M bit
MAC	16K
Forwarding performance	6.55Mpps
Prior Ports	1 to 8
Standards	IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az
Power Supply	AC: 100 to 240V, 50/60Hz
PoE Standard	IEEE 802.3 at, IEEE 802.3af
PoE Mode	ModeB (4578)
Max.PoE Power	Max capacity:370W Max capacity for single port: 30W
Max.Power	390W
Cooling Fans	1
Dimensions (W×D×H)	44025044mm
Operating Temperature	0°C to 40°C (32°F to 104°F)
Operating Humidity	10% to 90% (noncondensing)
Indicator	POWER: Steady on: AC input is normal Off: No AC input PoE: Off: No PoE power supply Steady on: PoE power supply is normal PoE-MAX： off ：The POE power supply power of the whole machine is less than 80% of the specification Steady on : The POE power supply power of the whole machine is greater than 85% of the specification LINK/ACT： Off: No link Steady on: Linked Flashing: Transmitting data
Weight	2.93KG
Working Mode	Default (Normal mode) : All ports can communicate with each other, VLAN (Secure mode): Downlink ports can communicate only with uplink ports. Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period of time, Extend (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports
