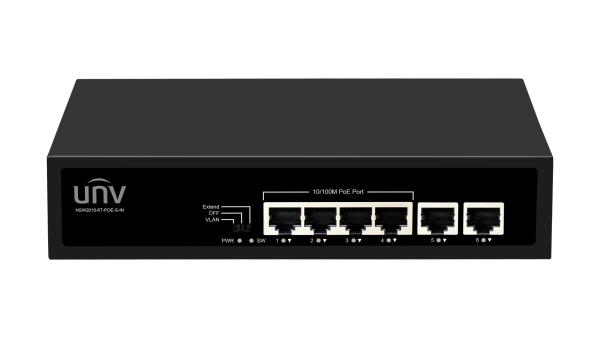

NSW2010-6T-POE-S-IN

4-Port POE Uplink-Port 200 Megabit,POE 60W

? Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3af/at standards.
? Ethernet port supports 10/100Mbps.
? Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard.
? Support port auto flip (Auto MDI/MDIX) .
? Automatically supplied to adaptive devices.
? Panel indicator monitoring status and help failure analysis.
? Support for VLAN mode, Normal mode and Extend mode.

Datasheet
HD Image
Quick Guide
Dimensions

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2025/8/27 5:05:45	UNV NSW2010-6T-POE-S-IN Unmanaged Ethernet POE Switches.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2025/9/20 3:00:33	NSW2010-6T-POE-S-IN_HD_Image_1.png	png	Download

Class	Date	Title	Language	Type	Preview	Download
Quick Guide	2024/12/18 4:49:52	Quick Guide.pdf	English	pdf	Preview	Download

Class	Date	Title	Download
Dimensions	2025/9/20 3:00:33	NSW2010-6T-POE-S-IN_Dimensions_1.png	Download

	NSW2010-6T-POE-S-IN
Hardware Specification
Ports Type	6×100Mbps network ports (RJ45), including 4 PoE ports
Switching capacity	1.2 Gbps
Forwarding performance	0.90Mpps
Standards	IEEE802.3, IEEE802.3u, IEEE802.3x
Packet Buffer	768K bit
MAC	2K
Max.PoE Power	Max capacity: 60W Max capacity for single port: 30W Mode A: 1/2+, 3/6-
Max.Power	65W
Dimensions (W×D×H)	Product : 200 x 118 x 44mm Package : 24519060mm
Cooling Fans	0
Working Temperature	-10°C to 50°C (14°F to 122°F)
Weight	0.54 kg
Working Mode	Default(Normal mode) : All ports can communicate with each other., EXTEND(Surveillance mode): Transmission distance up to 250 meters., VLAN(Secure mode): Downlink ports can communicate only with uplink ports.
Indicator Light	PWR（power supply），SW（DIP），1-6 Green（Link&Data）
